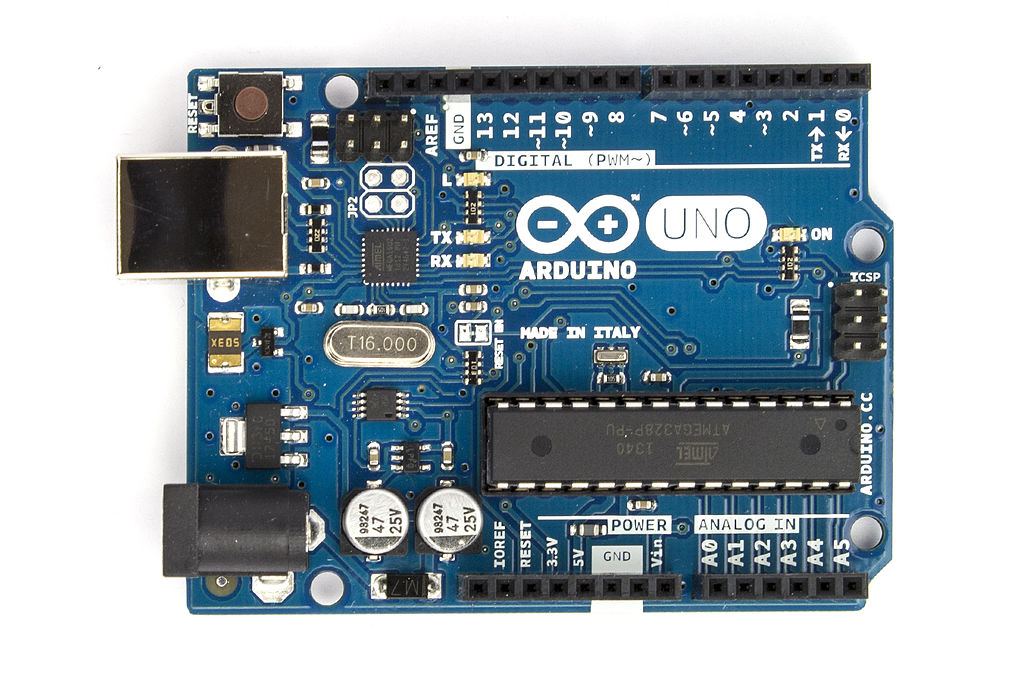

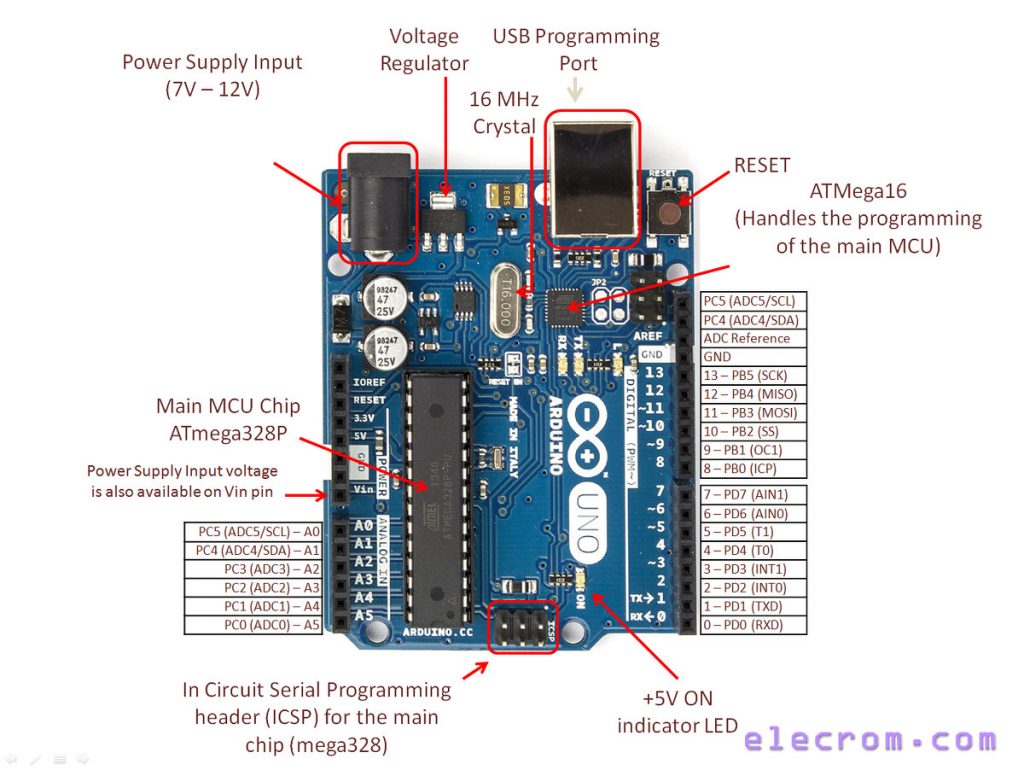

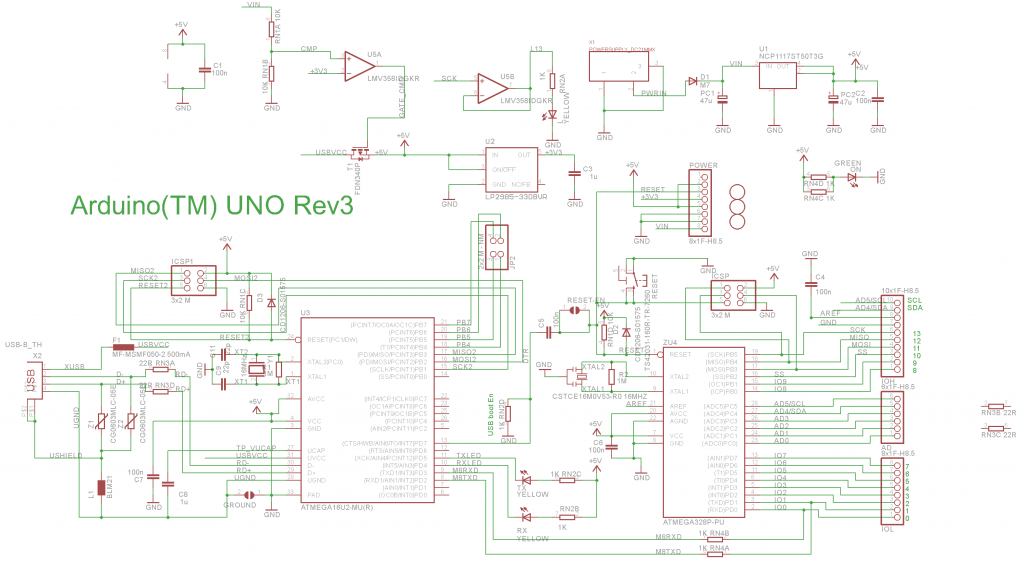

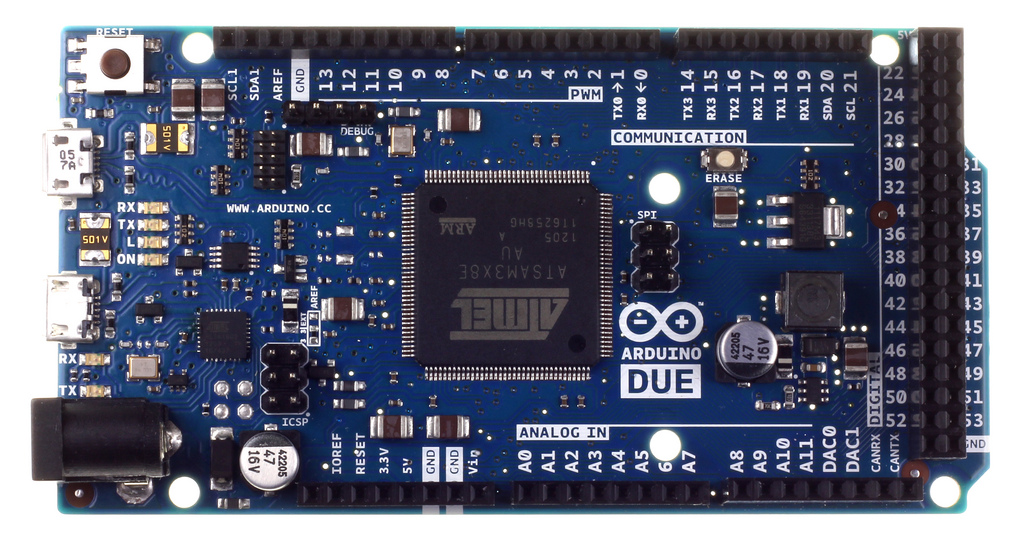

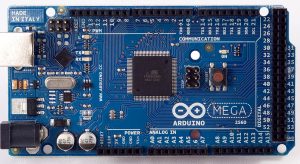

Introduction to Arduino UNO (uses AVR ATmega328) Elecrom January 27, 2017; Updated On: January 27th, 2017 4 Overview Arduino is an Open Source embedded development platform which is easy-to-use. It comprises of Hardware boards and Software tools. Examples of some of the most popular Arduino Hardware boards are – Arduino Uno This board is designed around the ATmega328 AVR microcontroller. It is an 8 bit microcontroller with 32KB of flash, 2KB of SRAM, 1KB of EEPROM, timers, ADC, I2C, SPI, and UART peripherals. Arduino Mega This board is designed around the ATmega2560 AVR microcontroller. It is an 8 bit microcontroller with 256KB of flash, 8KB of SRAM, 4KB of EEPROM, timers, ADC, DAC, I2C, SPI, UART, and touch peripherals. Arduino Due This board is designed around the SAM3X8E Smart ARM (SAM) microcontroller. It has a 32 bit ARM Cortex M3 processor with 512KB of flash, 100KB of SRAM, Ethernet, CAN, USB minihost, highspeed SD/SDIO/MMC, USART, SPI, TWI, ADC, DAC, timers, temperature sensor and touch peripherals. Arduino Software tools Arduino IDE This is an Integrated Development Environment which offers compilation-to-download functionality with a rich set of library functions. Arduino Programming Language A fancy name for a – simplified C language based programming platform with a rich set of libraries for accessing microcontroller features and third party hardware chips! Because of simplicity, Arduino platform quickly became famous. This blog post collects all the trivial information necessary for you to get started with Arduino Uno. Arduino Uno Pinout Arduino Uno is based on ATmega328P Atmel AVR family microcontroller (MCU). This MCU has 32KB of flash, 2KB of SRAM and 1 KB of EEPROM. It has 14 digital IO pins (PORTD – 8pins, PORTC – 6 pins, PORTB – 5pins), 6 Analogue input pins, which can be sampled using on-chip ADC. It also has 6 PWM outputs multiplexed on to the digital IO pins. A 16 MHz crystal is installed on the board. Arduino Uno dimensions measure 68.6 mm X 53.4 mm. Following figure shows the Arduino Uno R3 pinout (i.e. Pin mapping from AVR pins to Arduino headers) and other hardware details of the board. Arduino Uno Schematic The Complete archive of the EAGLE schematic diagram and board layout is provided on the Arduino website. https://www.arduino.cc/en/uploads/Main/arduino_Uno_Rev3-02-TH.zip For a quick reference, coloured version of the Arduino Uno R3 schematic is given below: PDF Schematics https://www.arduino.cc/en/uploads/Main/Arduino_Uno_Rev3-schematic.pdf ATMega328P Datasheet http://www.atmel.com/Images/doc8161.pdf Harnessing the full power of ATmega328P MCU Arduino Software framework is extremely simple, and straight forward to use. However, this simplicity comes at the expense of the full control on the MCU code. In order to use the full power of MCU, it can be best used with the Atmel Studio. Where to buy Arduino Uno R3? Arduino Uno Kit can be bought at really cheap prices from the following sources Arduino Learning Kit (With Stepper Motors, 160×2 LCD, Servo, Buzzer, LCD Dot matrix, Photoresistors, Potentiometer, LM35 temperature sensor, Infrared receiver, Flame sensor, Tilt sensor, SMD components box, ULN2003 drive board, Jumper wires) Buy Arduino Uno R3 Learning Kit Arduino Uno R3 board Buy Arduino Uno R3 Arduino Uno R3 board (From Amazon India) Buy Arduino Uno from Amazon Other useful information about Arduino Uno ATMega328P Datasheet http://www.atmel.com/Images/doc8161.pdf Arduino Uno Project Hub: Contains lots and lots of projects made of hobbyists https://create.arduino.cc/projecthub/products/arduino-uno-genuino-uno Arduino UNO Datasheet Unfortunately, there is no single document which can serve as the comprehensive datasheet for this board. In this blog post, most of the necessary material is gathered from the arduino.cc website. To get more details about the Arduino you can refer to: https://www.arduino.cc/en/Main/ArduinoBoardUno #Arduino #Arduino-Uno #Atmel #AVR #Introduction #Beginner
